Advanced Machines ...at the leading edge of Atmospheric Pressure Plasma technology

DoubleJet is a modular device generating 2 Atmospheric Pressure Plasma Jets, which could operate separately or simultaneously. The quality of each plasma jet is controlled by its own controlling system.

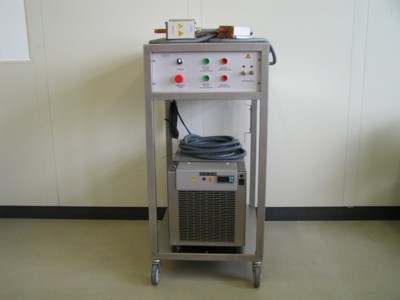

A brand new DoubleJet device has two plasma torches, which could be used simultaneously or separately. These two independent torches connected to one electronic cabinet allow treatment of two times larger surface, comparing to standard MonoJet device, or treatment of two different surfaces. The DoubleJet is assembled onto a trail together with cooling station. It makes the device easily transportable from one line to another when and where the treatment is needed.




Technical Data*

  Power in plasma from 200 to 2000 W
  Continuous or pulse mode yes
  Pulse duration min. 200 ms
  Plasma generating gas air, nitrogen **
  Gas flow rate, variable 3 to 50 l/min
  Treatment width up to 30 mm
  Diameter of treated spot on a static surface up to 30 mm
  Power supply to plasma
  generator flexible connection up to 15 meters
  Cooling medium water
  Cooling water flow rate min 2.5 l/min at 4 bars
  Dimensions of control cabinet, W x H x D 19" x 210 mm x 300 mm
  Plasma generating unit, Diam. x L 45 mm x 150 mm
  Weight ~ 22 kg
* All data are given per jet
** DoubleJet accepts also usage of different gases and their mixtures
